Máquina mezcladora mezcladora de plástico 50 KG
Parámetro de la máquina mezcladora/licuadora de plástico
| Modelo | ZL-PM50KG |
| Capacidad de mezcla | 50 kg |
| Poder | 1,5 KW |
| Revoluciones por minuto | 62(RPM) |
| Tamaño de la tolva de mezcla | diámetro 610 mm ï¼alto 560 mm |
| Tamaño de la máquina | 830*760*1020 mm |
| Peso neto | 95 kg |
NOTA:Los parámetros anteriores son para modelos convencionales. Se admite la personalización.
Introducción a la máquina
El mezclador de plástico es un dispositivo utilizado en la industria de procesamiento de plástico para mezclar uniformemente diferentes tipos de materias primas plásticas, aditivos, etc.Desempeña un papel crucial en el proceso de producción de productos plásticos.
Al mezclar completamente varias materias primas, se puede garantizar que los productos plásticos cumplan con los requisitos esperados en términos de rendimiento, color, textura, etc.
Principio de funcionamiento:
Existen varios métodos de trabajo de mezcladores de plástico.
Incluye mezcladores rotativos y mezcladores agitadores.Los mezcladores rotativos hacen que los materiales giren y se mezclen en el interior mediante la rotación del recipiente; Los mezcladores agitadores logran una mezcla uniforme de los materiales confiando en la rotación de las paletas del agitador.
El efecto de mezcla del mezclador de plástico depende de factores como el diseño estructural del mezclador, la velocidad de rotación, el tiempo de mezclado y la cantidad de entrada de los materiales.
Ventajasï¼
Aplicacionesï¼
.
Preguntas frecuentes:
El mezclador de plástico es un dispositivo utilizado en la industria de procesamiento de plástico. Puede mezclar uniformemente diferentes tipos de materias primas plásticas y aditivos. Generalmente se compone de un cilindro mezclador, una paleta mezcladora, un dispositivo de transmisión y un sistema de control. Es fácil de operar, puede mejorar la eficiencia de la producción, garantizar la composición uniforme de los productos plásticos y mejorar la calidad del producto.
La mezcladora vertical es una solución industrial que ahorra espacio para la mezcla de diversos materiales. Su motor de alto par y velocidad ajustable procesan pastas granulares, pulverulentas o viscosas, garantizando una mezcla uniforme. La cámara sellada evita la contaminación y las fugas de polvo, ideal para las industrias alimentaria, de procesamiento de plásticos, química y de materiales de construcción. Su resistente construcción en acero inoxidable garantiza una larga vida útil, mientras que su diseño intuitivo simplifica la operación, la descarga y el mantenimiento. Ideal para líneas de producción pequeñas y medianas, mejora la calidad y la eficiencia del producto en todas las aplicaciones.
Quick Specs: ZL-MX customizable vertical plastic mixer with multiple capacity options, custom configurations available, CE certified. Best for specific plastic mixing requirements.

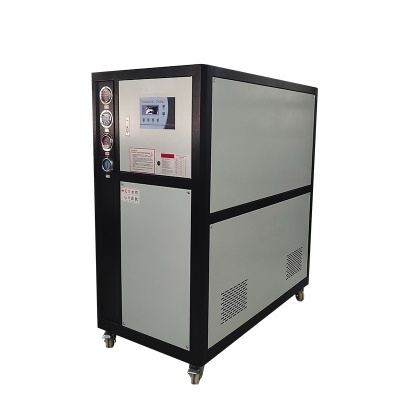

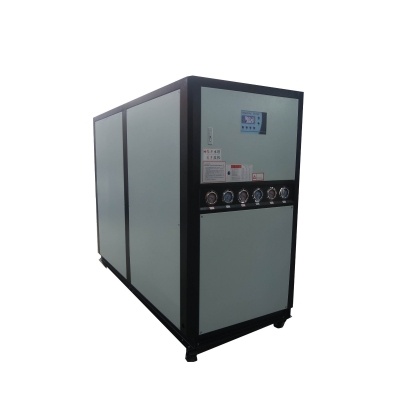

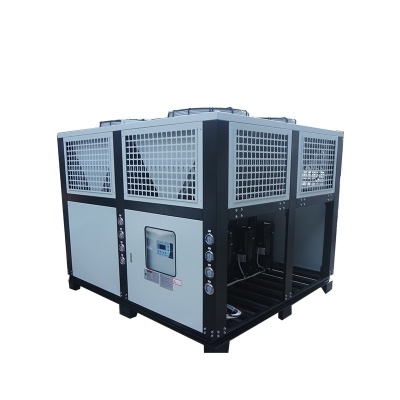

Las máquinas de refrigeración por agua se utilizan ampliamente en procesos industriales, centros de datos, edificios comerciales y otras aplicaciones donde la refrigeración fiable del agua es esencial. Ofrecen varias ventajas sobre otros métodos de enfriamiento, incluida una mayor eficiencia, menores requisitos de mantenimiento y la capacidad de operar en una amplia gama de entornos.
Overview The ZL-50T is a 50-ton (175.85 kW) industrial FRP counter flow cooling tower purpose-built for engineering specifications applications. ZILLION engineered this 50-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 175.85 kW (50 refrigeration ton) Water flow rate: 39.2 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 330 CMM at 930 mm fan diameter Motor power: 1.5 kW at 380V 3-phase 50 Hz Head loss: 17 kPa at design flow Dry weight: 190 kg, operating weight: 975 kg Overall dimensions: H1940 x Dia1860 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications 5 deg C wet-bulb approach at 27 deg C design condition for engineering specifications. 175.85 kW heat rejection at 50 ton (TR) capacity with 17 kPa head loss at 39.2 m3/h design flow. Fan curve 330 CMM at 930 mm blade diameter with 1.5 kW motor at 380V 3-phase 50 Hz. CTI STD-201 thermal performance certification available with Reynolds number analysis and selection methodology included with quotation package. Contact ZILLION Today Get a quote for the ZL-50T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.
Overview The ZL-25T is a 25-ton (88 kW) industrial FRP counter flow cooling tower purpose-built for engineering specifications applications. ZILLION engineered this 25-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 88 kW (25 refrigeration ton) Water flow rate: 19.51 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 200 CMM at 770 mm fan diameter Motor power: 0.75 kW at 380V 3-phase 50 Hz Head loss: 16 kPa at design flow Dry weight: 98 kg, operating weight: 500 kg Overall dimensions: H1900 x Dia1380 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications 5 deg C wet-bulb approach at 27 deg C design condition for engineering specifications. 88 kW heat rejection at 25 ton (TR) capacity with 16 kPa head loss at 19.51 m3/h design flow. Fan curve 200 CMM at 770 mm blade diameter with 0.75 kW motor at 380V 3-phase 50 Hz. CTI STD-201 thermal performance certification available with Reynolds number analysis and selection methodology included with quotation package. Contact ZILLION Today Get a quote for the ZL-25T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.
Overview The ZL-175T is a 175-ton (615.5 kW) industrial FRP counter flow cooling tower purpose-built for engineering specifications applications. ZILLION engineered this 175-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 615.5 kW (175 refrigeration ton) Water flow rate: 136.8 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 1150 CMM at 1750 mm fan diameter Motor power: 4 kW at 380V 3-phase 50 Hz Head loss: 30 kPa at design flow Dry weight: 586 kg, operating weight: 1960 kg Overall dimensions: H2850 x Dia3300 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications 5 deg C wet-bulb approach at 27 deg C design condition for engineering specifications. 615.5 kW heat rejection at 175 ton (TR) capacity with 30 kPa head loss at 136.8 m3/h design flow. Fan curve 1150 CMM at 1750 mm blade diameter with 4 kW motor at 380V 3-phase 50 Hz. CTI STD-201 thermal performance certification available with Reynolds number analysis and selection methodology included with quotation package. Contact ZILLION Today Get a quote for the ZL-175T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.
Overview The ZL-175T is a 175-ton (615.5 kW) industrial FRP counter flow cooling tower purpose-built for agriculture food processing applications. ZILLION engineered this 175-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 615.5 kW (175 refrigeration ton) Water flow rate: 136.8 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 1150 CMM at 1750 mm fan diameter Motor power: 4 kW at 380V 3-phase 50 Hz Head loss: 30 kPa at design flow Dry weight: 586 kg, operating weight: 1960 kg Overall dimensions: H2850 x Dia3300 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications SS316L food-grade stainless steel upgrade option for HVAC mega-capacity industrial HTST pasteurization (72 to 32 deg C pre-cooling) and chiller condenser loop (4 deg C chilled water final cooling). 615.5 kW capacity supports 30,000 L/h milk processing lines. CE certified, FDA 21 CFR compliant materials. Suitable for brewery wort cooling, beverage production, and dairy processing operations. USDA-FSIS compliant for meat and poultry processing. Contact ZILLION Today Get a quote for the ZL-175T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.
La serie de productos de nuestra empresa es bien conocida en la industria de maquinaria auxiliar de plástico por su excelente rendimiento y alto costo.
